Aerodynamic Saddle Bag Design
Lightweight, aero-conscious saddle bag designed to integrate cleanly with a Canyon Ultimate seatpost.
Autodesk Fusion 360
3D Printing
Rapid Prototyping
Tolerancing
Objective
Design and fabricate a lightweight, aerodynamic saddle bag that integrates cleanly with a Canyon Ultimate seatpost, minimizes drag, and securely carries essential ride items using a parametric CAD model and a 3D-printed prototype.
Design Requirements
- Minimize frontal and side projected area behind the seatpost.
- Maintain secure mounting under dynamic road vibration.
- Achieve low mass while preserving sufficient stiffness.
- Enable one-handed access to contents.
- Fit common cycling tools.
- Be manufacturable via 3D printing.
Key Design Features

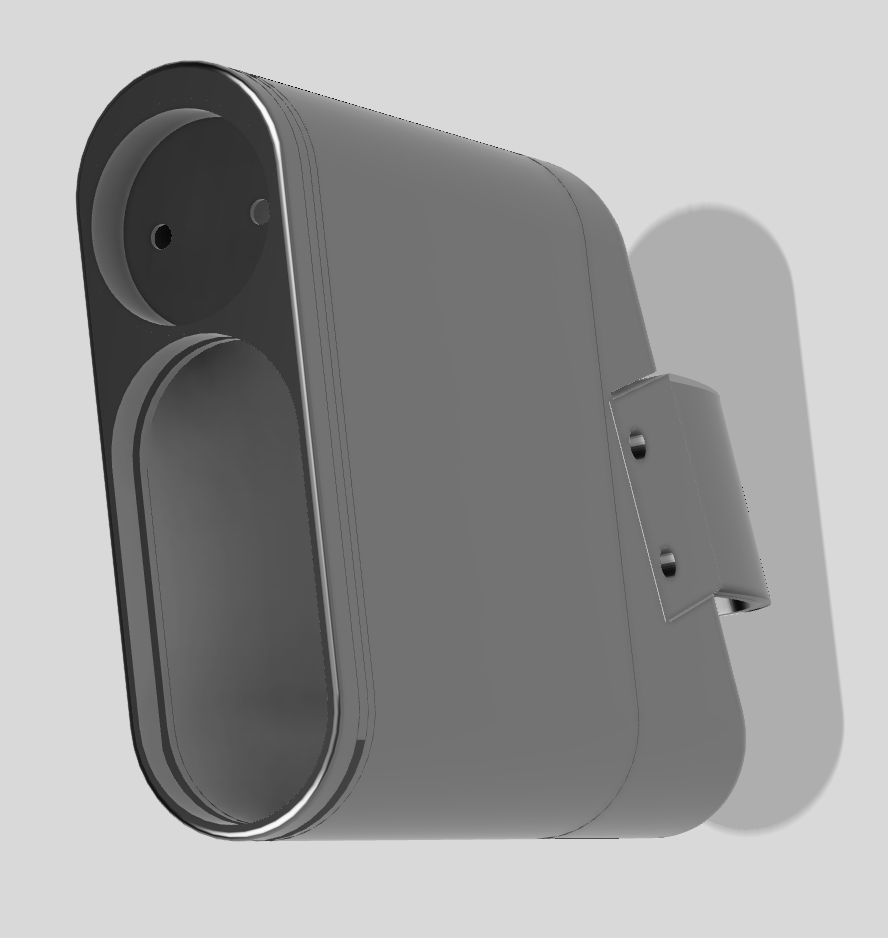

- Streamlined, tapered housing to reduce flow separation behind the saddle.

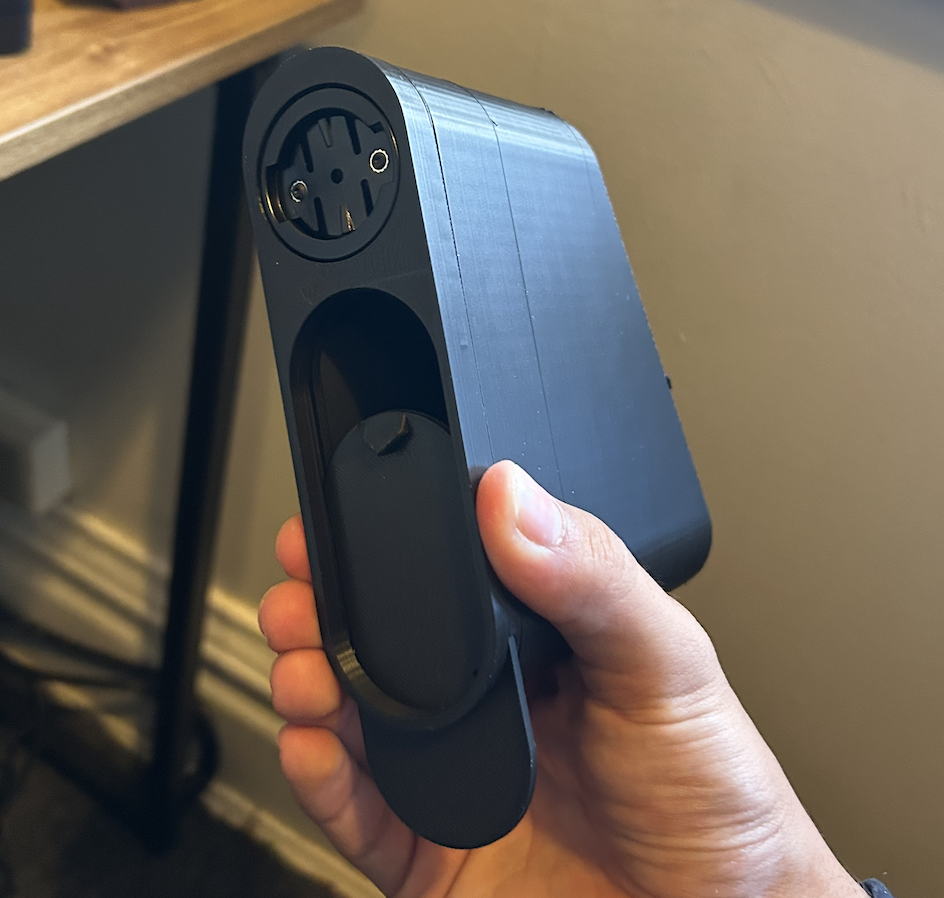

- Integrated Garmin Varia light mount with toleranced interface and threaded insert for secure attachment.

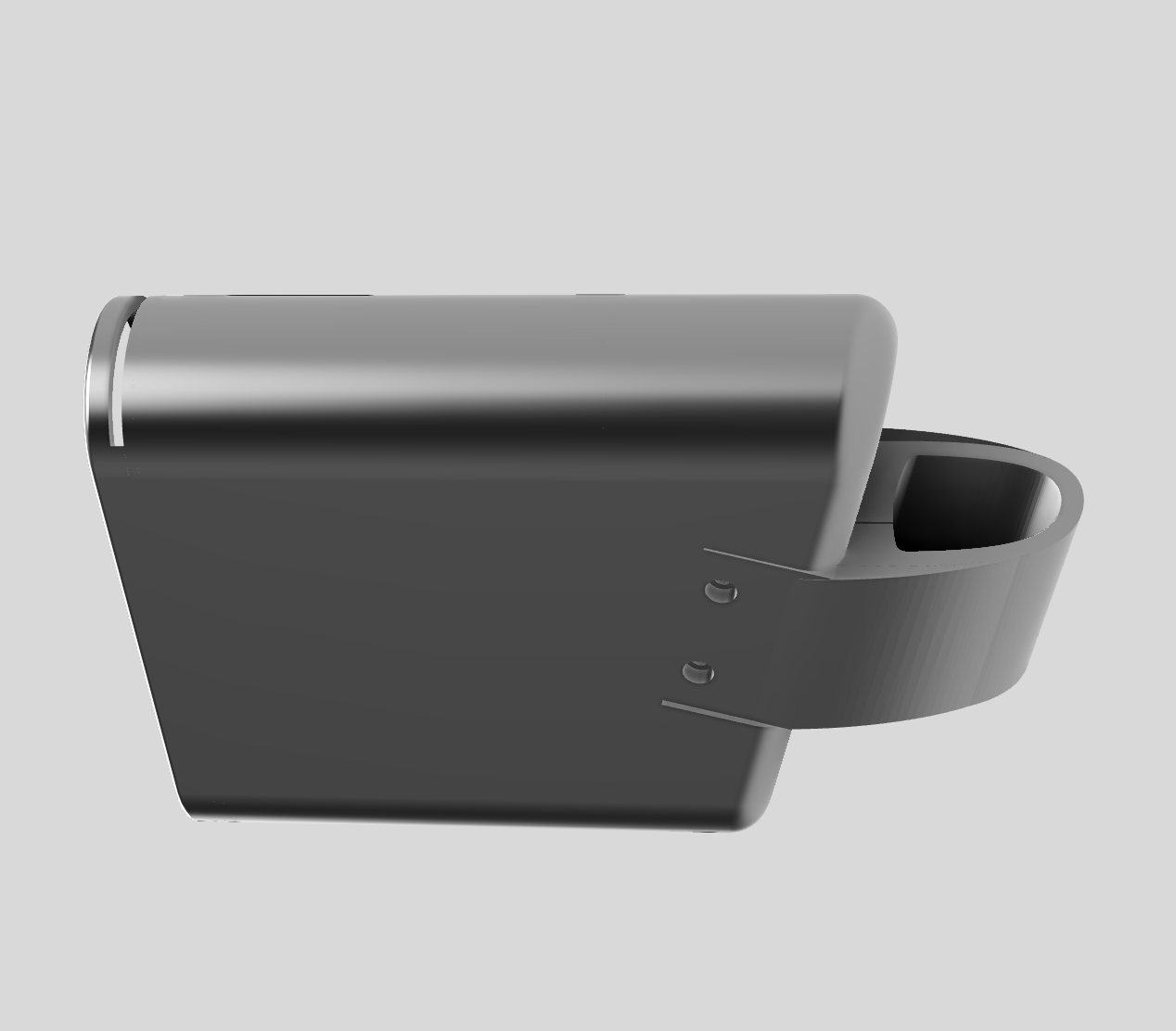

- Custom seatpost clamp geometry for rigid, strap-free attachment.
- Smooth exterior surfaces with controlled fillets to reduce stress concentrations and drag.
Outcomes

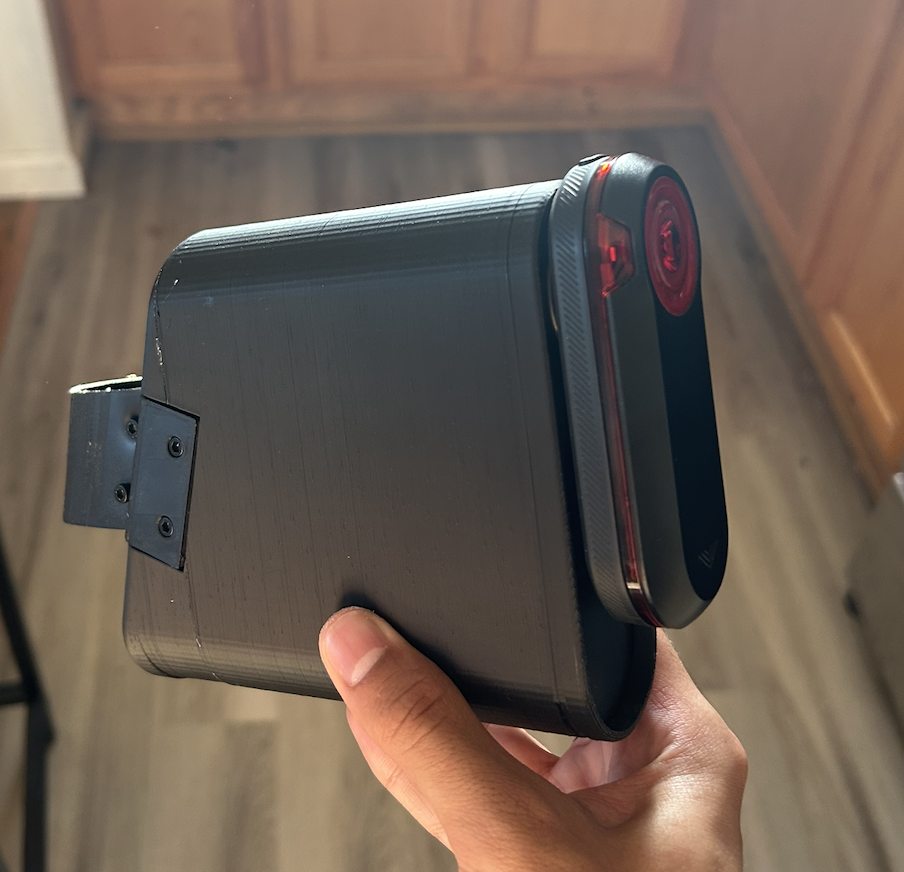

- Produced a functional, lightweight saddle bag prototype.
- Achieved a compact, aero-conscious form factor compared to traditional fabric bags.

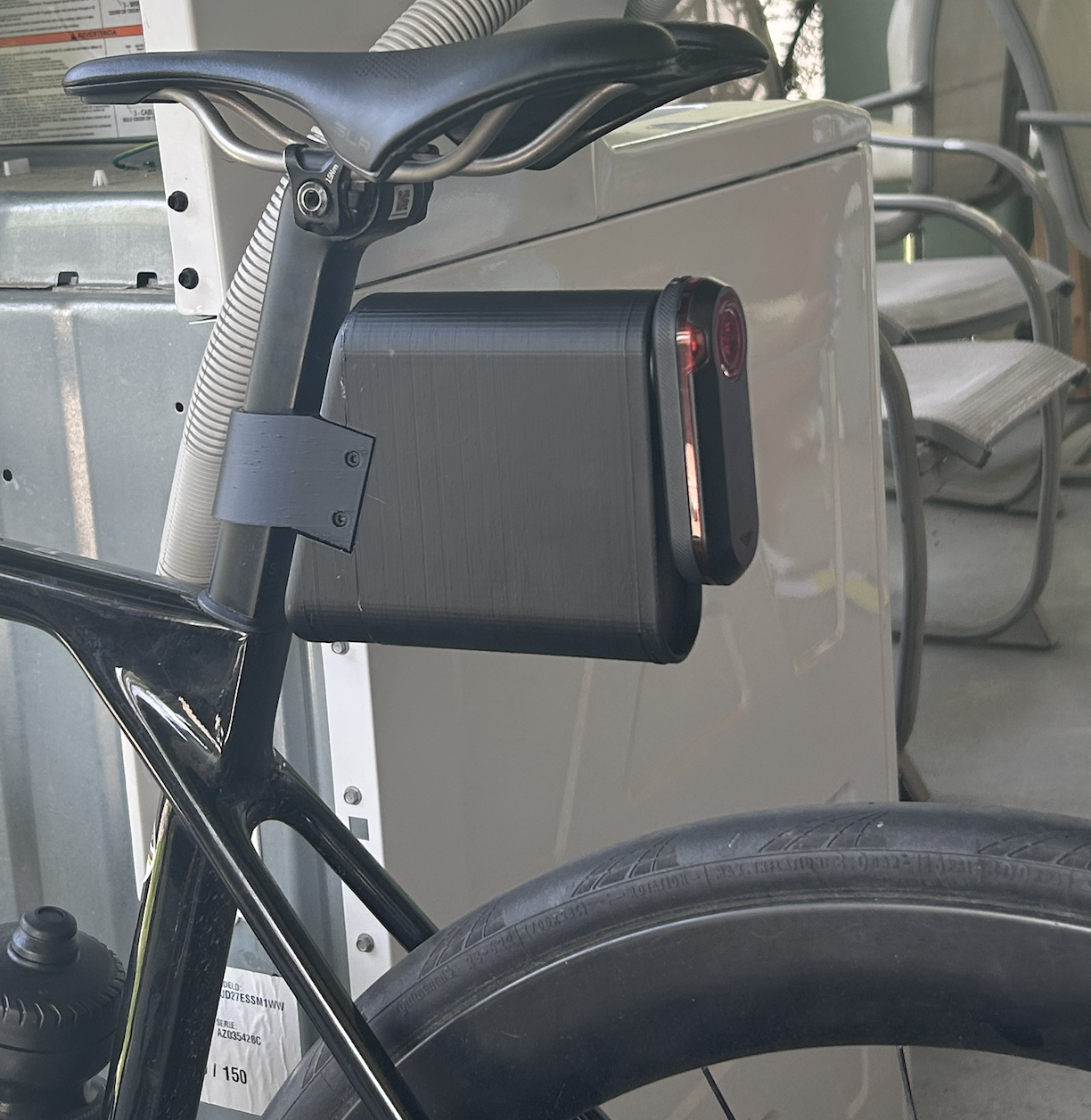

- Demonstrated secure mounting with no sway during riding.
- Integrated rear lighting without additional mounts or hardware.
Next Steps
- Conduct CFD analysis to quantify drag reduction and evaluate flow separation.
- Refine slicing configuration to reduce stress concentrations and improve print reliability.
